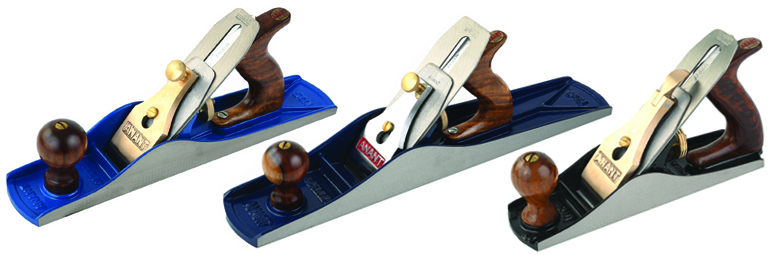

ANANT Iron Bodied Bench Planes
ANANT Plones are made in comprehensive range of patterns and sizes suitable for different purposes. They embody many notable improvements and are produced with great care and accuracy.
The cut irons in all ANANT Adjustable Planes are made of high Carbon Steel.
The cut iron is hardened and tempered under scientific control ensuring accuracy and uniformity. It is precision ground all over, and is tested and guaranteed to be right temper.
The body is ribbed to ensure strength and rigidity. The machined faces of the frog bed firmly on to similar machined faces on the body and are securely fastened in position by two frog screws which in effect makes the frog solid with the body and prevents chattering. The parts for adjusting the cut iron are accurately made to give very fine adjustment. The handle and knob are of selected hardwood/high quality plastic and are fastened to the body by steel studs with steel cap nuts.
Materials:
-
Body, Frog & Lever Cap : High Grade Cast Iron
-
Cut Iron: High Carbon Steel
-
Cap Iron: Best Quality Steel
-
Handle & Knob : Selected Hardwood/High Quality Plastic
-
Body and Frog: Stove Enamelled ANANT blue/Black. Base and sides of body ground and polished.
-
Lever Cap: Plated.
-
Packing: Individually Cartoned
| Plane No. | Type | Length (Inches) | Length (MM) | Width of Cut Iron (Inches) | Width of Cut Iron (MM) | Approx. Weight (Pounds) | Approx. Weight (Grams) | Unit Packing |
|---|---|---|---|---|---|---|---|---|
| A3 | Smooth | 9½ | 235 | 1¾ | 45 | 3½ | 1300 | 12 |
| A4 | Smooth | 9¾ | 250 | 2 | 50 | 4 | 1500 | 12 |
| A4½ | Smooth | 10½ | 265 | 2 3/8 | 60 | 5½ | 1950 | 12 |
| A5 | Jack | 14 | 355 | 2 | 50 | 5 | 1850 | 12 |
| A5½ | Jack | 15½ | 380 | 2 3/8 | 60 | 6 | 2240 | 12 |
| A6 | Fore | 18 | 455 | 2 3/8 | 60 | 7½ | 2800 | 6 |
| A7 | Jointer | 22 | 560 | 2 3/8 | 60 | 8 | 3000 | 6 |
| A8 | Jointer | 24 | 610 | 2 3/8 | 60 | 9 | 3350 | 6 |
| Plane No. | Type | Length (Inches) | Length (MM) | Width of Cut Iron (Inches) | Width of Cut Iron (MM) | Approx. Weight (Pounds) | Approx. Weight (Grams) | Unit Packing |
|---|---|---|---|---|---|---|---|---|
| AA3 | Smooth | 9½ | 235 | 1¾ | 45 | 3½ | 1300 | 12 |
| AA4 | Smooth | 9¾ | 250 | 2 | 50 | 4 | 1500 | 12 |
| AA4½ | Smooth | 10½ | 265 | 2 3/8 | 60 | 5½ | 1950 | 12 |
| AA5 | Jack | 14 | 355 | 2 | 50 | 5 | 1850 | 12 |
| AA5½ | Jack | 15½ | 380 | 2 3/8 | 60 | 6 | 2240 | 12 |
| AA6 | Fore | 18 | 455 | 2 3/8 | 60 | 7½ | 2800 | 6 |
| AA7 | Jointer | 22 | 560 | 2 3/8 | 60 | 8 | 3000 | 6 |
| AA8 | Jointer | 24 | 610 | 2 3/8 | 60 | 9 | 3350 | 6 |
