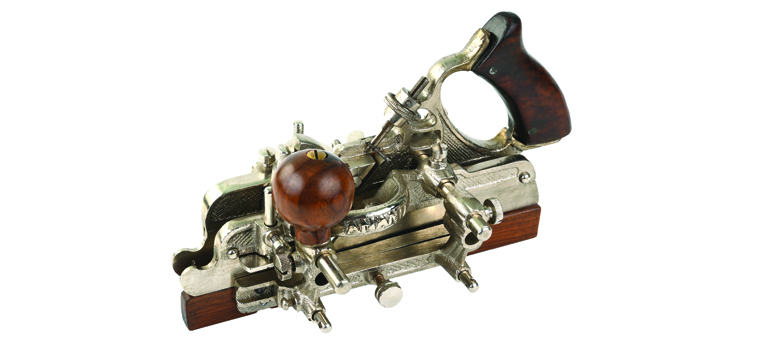

ANANT Multi Plane No. A45
The ANANT Multi-Planes, as its name implies, will perform a wide range of planing operations required by the cabinet maker and joiner, consisting of:
1.PLOUGHING, 2.DADOING, 3.BEADING, 4.CENTRE BEADING, 5.RABBETING & FILLISTERING, 6.MATCH PLANNING, 8.SLITTING, 7.SASH PLANNING
The many outstanding features of the ANANT multi-plane include: screw adjustment to cut iron, also to fence and depth gauge, two sets of fence arms (long and short), beading stop, slitting cutter, slidding section depth gauge, cam steady, and spurs for cross grain work. 23 Cut Irons are supplied with the planes as standard equipment. A comprehensive instruction booklet supplied with each plane.
| Plane No. | Length (Inches) |
Length |
Unit Packing |
|---|---|---|---|
| A45 | 10 | 250 | 3 |
Materials:
-
Body & Sliding Section: High grade cast iron.
-
Cut Iron: High carbon steel
-
Fence: Cast iron with wood face, Handle and Knob selected hardwood/high quality plastic.
-
Finish: Plated all over.
-
Packing: Individually packed in a varnished wooden box. Length 108" (277mm), Approx. weight 10 pounds (4.54 kg).
-
Spare cut irons and parts are readily available.
