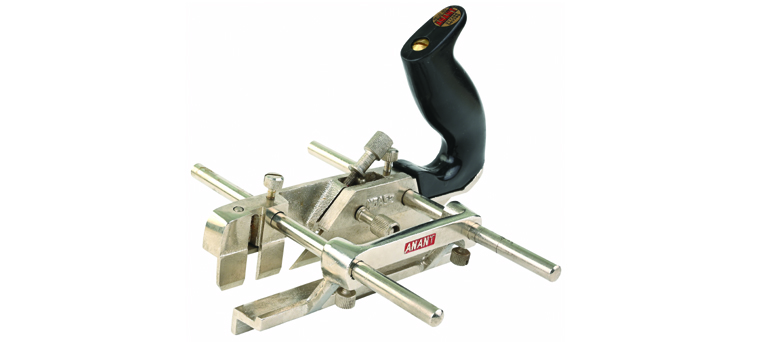

ANANT Plough Plane No. A52
ANANT Plough Plane will plough nine sizes of grooves from 1/8 inch (3mm) to 5/8 inch (16mm) in width to a depth of 5/8 inch (16mm) at any distance from the edge of the edge of the work upto 5 inches (127mm). 9 Standard of plough cut irons supplied with each plane. Screw adjustment ensure accurate and easy control of the cut iron whilst the cut iron clamping screw prevents lateral movement of the cut iron. Each plane is fitted with an adjustable depth gauge, a double arm adjustable bridge fence and two pairs of fence arms (long and sort). the fence may be used as either side of plane.
| Plane No. | Length (Inches) |
Length |
Unit Packing |
|---|---|---|---|
| A52 | 7 3/8 | 200 | 10 |
Materials:
-
Body & Sliding Section: High grade cast iron.
-
Cut Iron: High carbon steel
-
Finish: Chrome Plated all over.
-
Packing: Individually Cartoned. 9 Standard cut irons are supplied with this plane. 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8'
-
Spare cut irons and parts are readily available.
