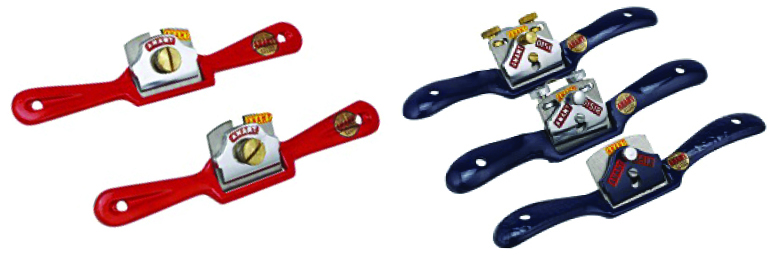

ANANT Spokeshaves
The Spokeshave is a handy shaping tool useful for small curves, furniture legs, etc; and provides a smooth plane-like finish. The wide range of spokeshaves caters for every requirement and is produced in two different types, (a) with flat face for use on convex curves, and (b) with round face for use on concave curves. The choice of raised and flat handles is a matter of personal preferences. All are fitted with double iron and the combined cop iron and lever cap being secured either by means of thumb screw or knurled screw according to type.
Materials:
-
Body: Nos. A151, A151R, A51, A51R, A63, A64, High Grade Malleable Iron. Guaranteed against breakage.
-
Nos. 0151, 0151R, 051 & 051R High Grade Cast Iron.
-
Cut Iron: High Carbon Steel
-
Finish: Stove Enamelled Malleable Iron Red, Cast Iron ANANT Blue.
-
Packing: Individually Cartoned 051, 051R, 0151, 0151R, A51, A51R, A151, A151R - Four per master carton.
-
Packing: A63 - Six per master carton.
No.0151 Flat Face, No.0151R Round Face
Raised Handle, Cast Iron Body.
No.A0151 Flat Face, No.A151R Round Face
Raised Handle, Malleable Iron Body.
No.A63 Round Face
Straight Handle, Malleable Iron Body.
No.0151 Flat Face, No.0151R Round Face
Adjustable Cut Iron, Raised Handle, Cast Iron Body.
No.A151 Flat Face, No.A151R Round Face
Adjustable Cut Iron, Raised Handle, Malleable Iron Body.
No.A64 Flat Face
Straight Handle, Malleable Iron Body.
| Plane No. | Length (Inches) |
Length (MM) |
Width of Cut Iron (Inches) | Width of Cut Iron (MM) | Unit Packing |
|---|---|---|---|---|---|
| 051 | 10 | 250 | 2 1/8 | 54 | 72 |
| 051R | 10 | 250 | 2 1/8 | 54 | 72 |
| 0151 | 10 | 250 | 2 1/8 | 54 | 72 |
| 0151R | 10 | 250 | 2 1/8 | 54 | 72 |
| A51 | 10 | 250 | 2 1/8 | 54 | 72 |
| A51R | 10 | 250 | 2 1/8 | 54 | 72 |
| A151 | 10 | 250 | 2 1/8 | 54 | 72 |
| A151R | 10 | 250 | 2 1/8 | 54 | 72 |
| A64 | 9 | 210 | 1 3/4 | 45 | 144 |
| A63 | 9 | 210 | 1 3/4 | 45 | 144 |
| Plane No. | Length (Inches) |
Length (MM) |
Width of Cut Iron (Inches) | Width of Cut Iron (MM) | Unit Packing |
|---|---|---|---|---|---|
| 0051 | 10 | 250 | 2 1/8 | 54 | 72 |
| 0051R | 10 | 250 | 2 1/8 | 54 | 72 |
| 00151 | 10 | 250 | 2 1/8 | 54 | 72 |
| 00151R | 10 | 250 | 2 1/8 | 54 | 72 |
| AA51 | 10 | 250 | 2 1/8 | 54 | 72 |
| AA51R | 10 | 250 | 2 1/8 | 54 | 72 |
| AA151 | 10 | 250 | 2 1/8 | 54 | 72 |
| AA151R | 10 | 250 | 2 1/8 | 54 | 72 |
| AA64 | 9 | 210 | 1 3/4 | 45 | 144 |
| AA63 | 9 | 210 | 1 3/4 | 45 | 144 |
