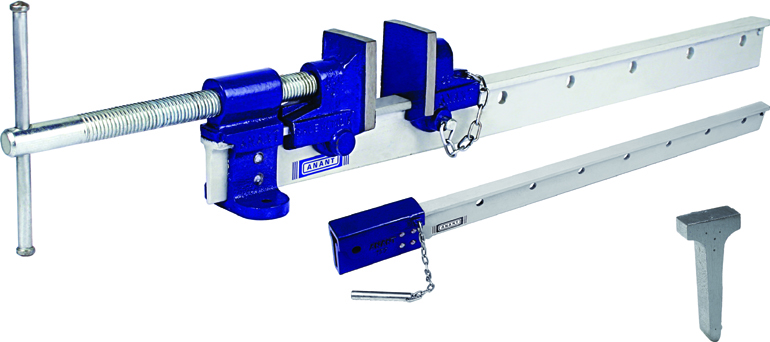

T-Bar Clamp
BAR Section:
Final Machine Scale No. A136, 13/4", 3/4" (45mm x 19mm).
The bars of these clamps are made of special T-Bar section steel & will not bend in use. The T edges on which the slides operates are dimensionally accurate ensuring an easy sliding movement. Head and slides are robustly designed to match the strength of the bar. The ANANT improved working slide, which incorporates large thrust surfaces ensure long wear and a reliable coupling between slides and screw.
Material:
Bar: Cold Rolled Steel T-Bar Section
Head & Slides: S.G.Iron
Screw & Handle: High Quality Steel
Finish:
Enamelled ANANT Blue.
Spare Parts are readily available.
| Length of Bar (in Inches) |
Length of Bar |
Width of Cut Iron (in Inches) |
Width of Cut Iron |
Approx. Weight (in Pounds) |
Approx. Weight |
|---|---|---|---|---|---|
| 24 | 610 | 15 | 381 | 8½ | 3.75 |
| 30 | 762 | 21 | 534 | 9 1/8 | 4.14 |
| 36 | 950 | 27 | 686 | 10 | 4.54 |
| 42 | 1068 | 33 | 839 | 10 7/8 | 4.94 |
| 48 | 1220 | 39 | 991 | 11¾ | 5.53 |
| 54 | 1372 | 45 | 1143 | 12 5/8 | 5.73 |
| 60 | 1524 | 51 | 1296 | 13½ | 6.13 |
| 66 | 1678 | 57 | 1448 | 14 3/8 | 6.52 |
| 72 | 1830 | 63 | 1601 | 15¼ | 6.92 |
| Length of Bar (in Inches) |
Length of Bar (in MM) |
Approx. Weight (in Pounds) |
Approx. Weight (in Kg.) |
|---|---|---|---|
| 24 | 610 | 4½ | 2.11 |
| 30 | 762 | 5½ | 2.51 |
| 36 | 950 | 6½ | 2.91 |
| 42 | 1068 | 7¼ | 3.3 |
| 48 | 1220 | 8 1/8 | 3.7 |
| 54 | 1372 | 9 | 4.1 |
| 60 | 1524 | 10 | 4.49 |
